Real Time Clock and Calendar Module
(Fully Assembled PCB)

Product Use

This 5 VDC Real Time Clock and Calendar Module is especially developed for Hobby use.

The Module only requires about 0.3mA at 5VDC.

The RTC IC (DS1302) located on the PCB is mounted in DIP socket and can be removed.

Precision timekeeping is assured by on board mounted crystal

Vcc Power Input Pin is connected to +5VDC that has a Common Ground with the Module Data and Control lines.

The Serial Data and RTC Control Inputs can be connected directly to any output pin of PARALLAX PROPELLER microcontroller without need for any resistors or Voltage translators.

The 5 VDC RTC Module is also Arduino Compatible.

Features

Clock Stand-by Power is provided by 3V Battery (CR2032)
Nominal Voltage 5V
The real-time clock/calendar provides seconds, minutes, hours, day, date, month, and year information.
TTL compatible

Connections

VMA301 Connectors Top View Right(1) to Left(5)

RST (CE) Reset/Enable
DAT (I/O) RECEIVE/SEND INSTRUCTION OR DATA
CLK (SCLK) System Clock
GND (Common System Ground)
Vcc (Vcc2) +5VDC

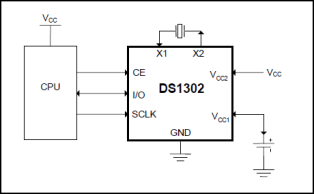

RTC Module schema — *Module Connection Schema*

Product Specifications

Power source voltage (min/max)	V_CC	4.5 / 5.5	V
Command Signal Voltage (min/max)	V_S	3 / 5	V DC
Power Consumption	P_on	12 to 16	mW
Operating Temperature	T_on	20 to 140 -6 to 60	°F °C
Dimensions		20 x 58 x 15	mm

Pricing

US $8.00 each

Real Time Clock and Calendar Module(Fully Assembled PCB)
